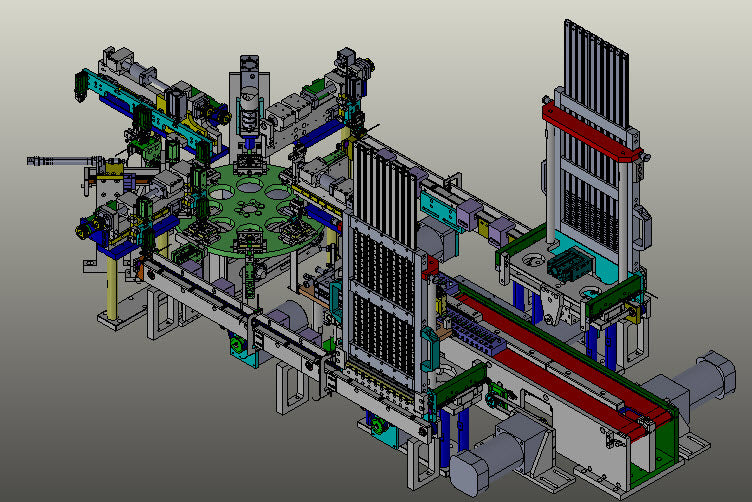

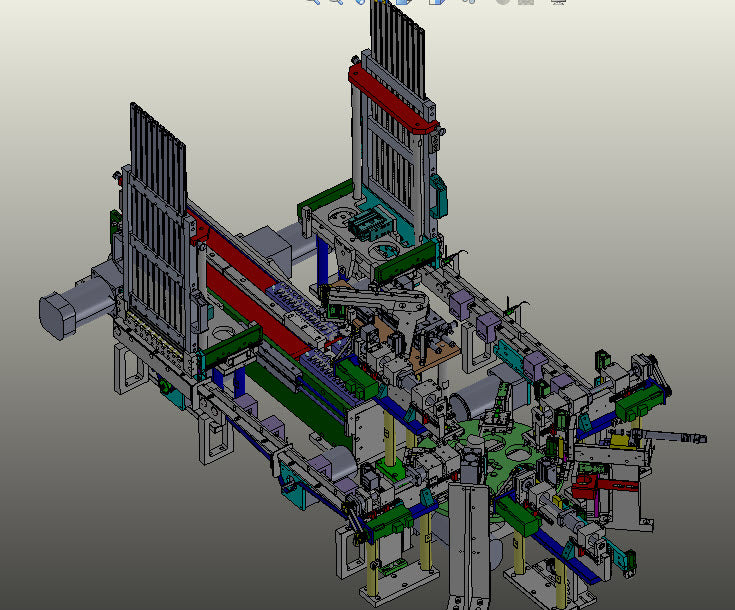

N301014 USB Assembly Production Line Equipment

This equipment is a complete automated assembly production line for USB connectors, distinct from single-station or stand-alone machines. It covers the entire process from component feeding to finished product output through multiple interconnected stations. The production line can include automatic feeding, plastic core assembly, terminal insertion, shell crimping, shielding case assembly, electrical performance testing, vision inspection, automatic packaging, and more, enabling continuous mass production of USB connectors.

Included Documentation:

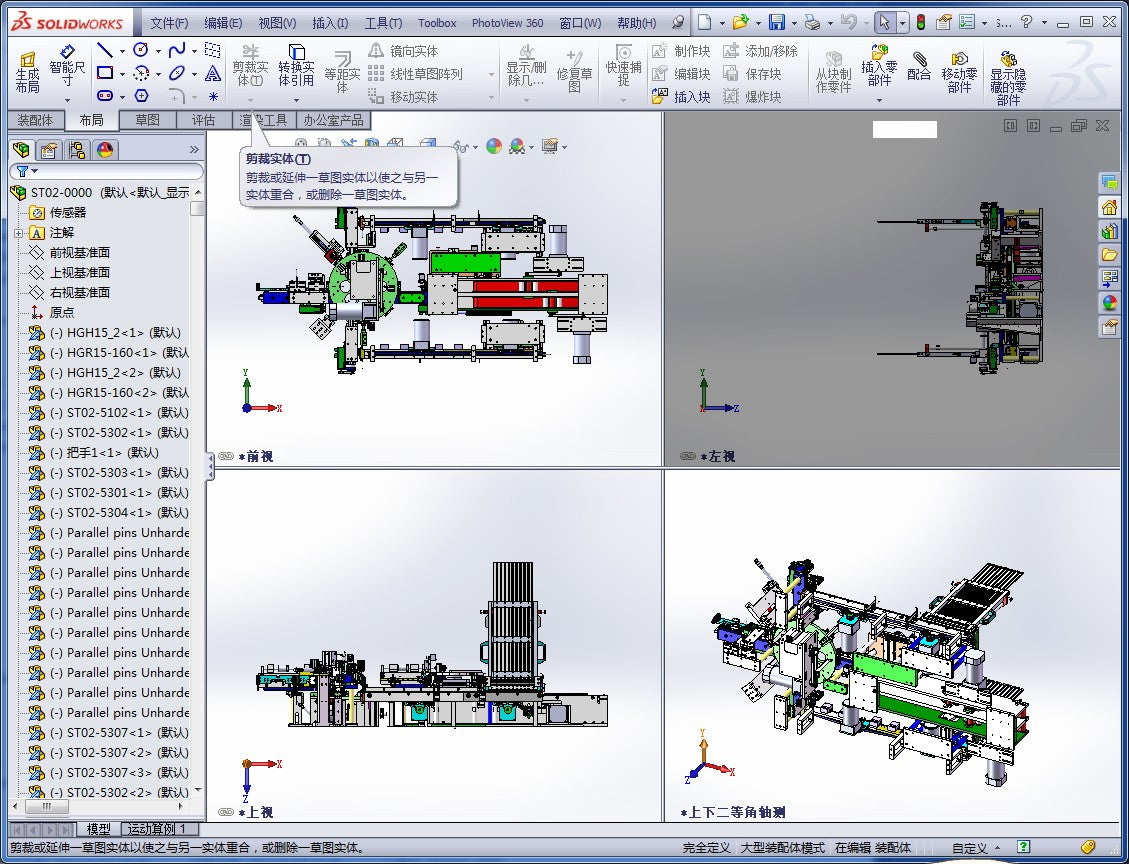

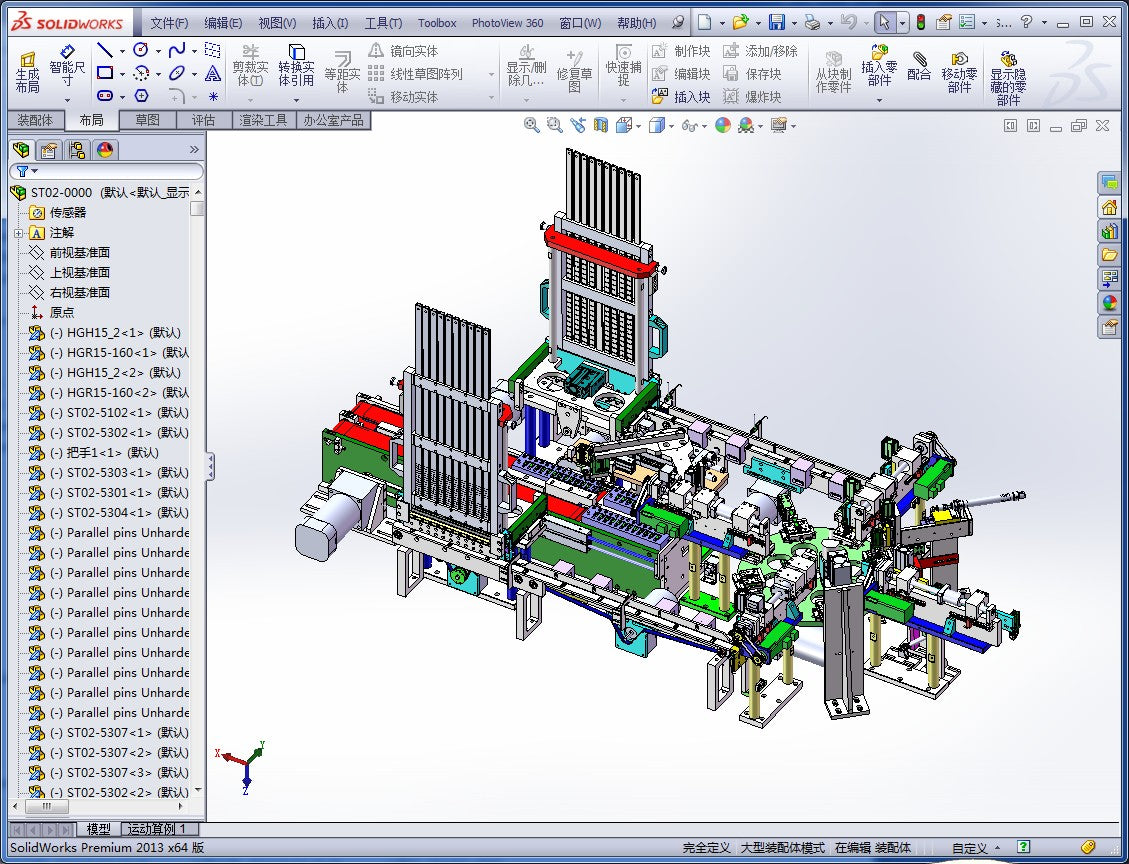

• ✅ SolidWorks source files (editable)

• ✅ Parts list in Chinese format

• ✅ Procurement list

• ✅ (If applicable) 2-ton pressing electric cylinder DMC93-XXX datasheet

Key Features:

• Complete USB assembly production line, not a single machine

• Multi-station in series for continuous flow production

• Customizable number of stations and process flow

• Includes testing and inspection stations to ensure yield

• Complete editable 3D source files and engineering documentation included

Applications:
USB connector mass production, Type-C turnkey line projects, connector OEM factory line construction, automation workshop upgrades

Suggested Category: SPM for Assembly

📁 This product comes with editable SolidWorks source files, a Chinese parts list, and a procurement list for complete line layout evaluation, station adjustment, and line integration.
