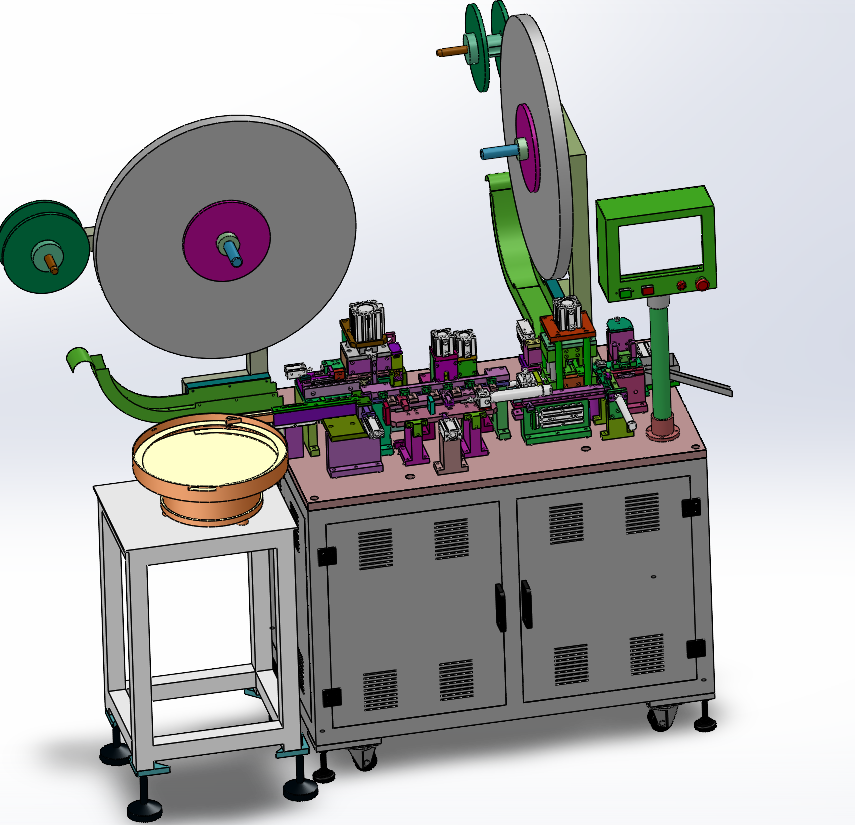

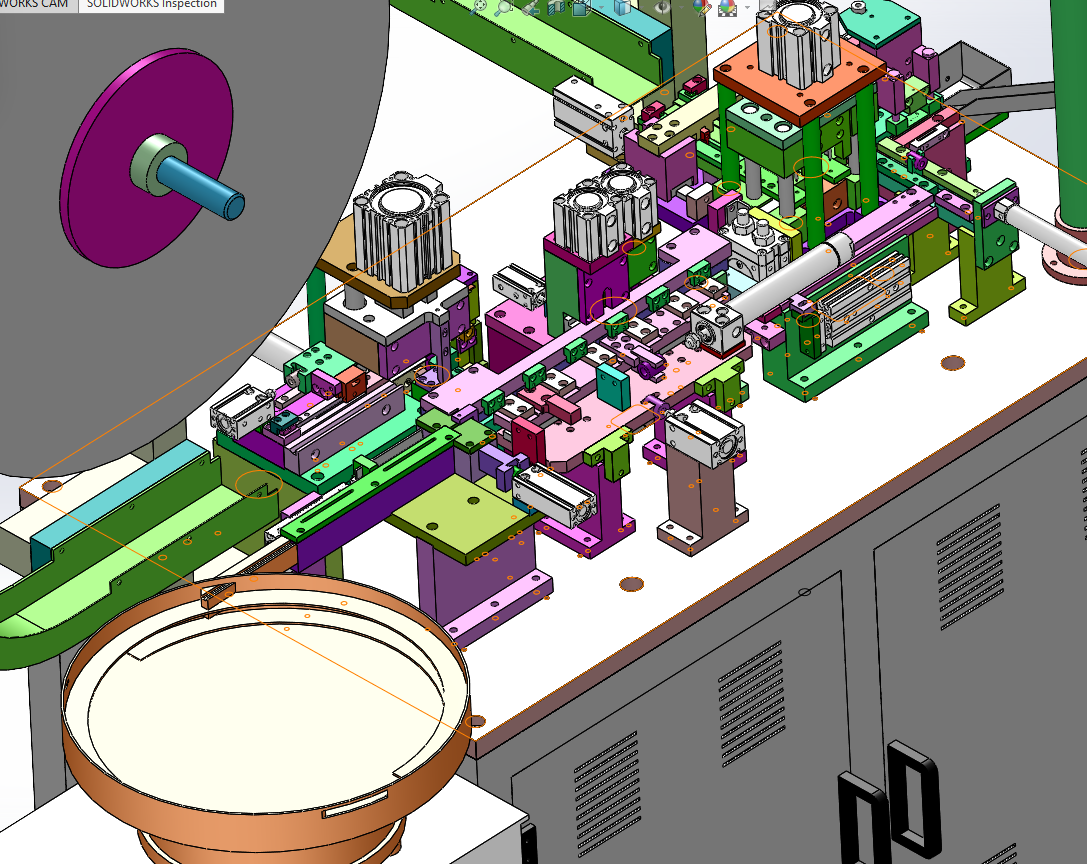

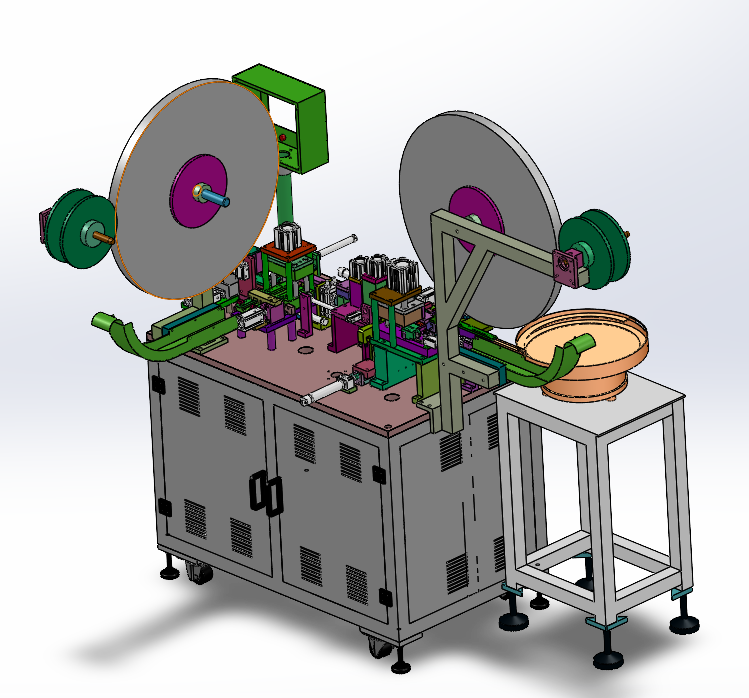

N301015 USB High-speed Automatic Pin Inserting & Assembly Machine

This machine is specifically designed for high-speed automatic pin insertion in USB connector production. It realizes automatic feeding, precision alignment, high-speed insertion, and insertion force monitoring for metal terminals (PINs). Suitable for terminal insertion processes of various USB connector specifications including USB 2.0 / 3.0 / Type-C. It can be integrated with upstream and downstream equipment or operated independently.

Included Documentation:

• ✅ SolidWorks source files (editable)

• ✅ Parts list in Chinese format

• ✅ Procurement list

• ✅ (If applicable) 2-ton pressing electric cylinder DMC93-XXX datasheet

Key Features:

• Dedicated to high-speed USB connector pin insertion process

• High-speed insertion with cycle time of 0.5-1.0 second per piece

• Real-time insertion force monitoring with abnormal alarm

• Compatible with various PIN counts and arrangements

• Optional vision positioning for insertion accuracy

• Complete editable 3D source files and engineering documentation included

Applications:
USB connector terminal insertion stations, high-speed pin insertion dedicated workstations, Type-C connector assembly lines, connector OEM factory capacity improvement

Suggested Category: SPM for Assembly

📁 This product comes with editable SolidWorks source files, a Chinese parts list, and a procurement list for engineering evaluation, mold adaptation, and line integration.
