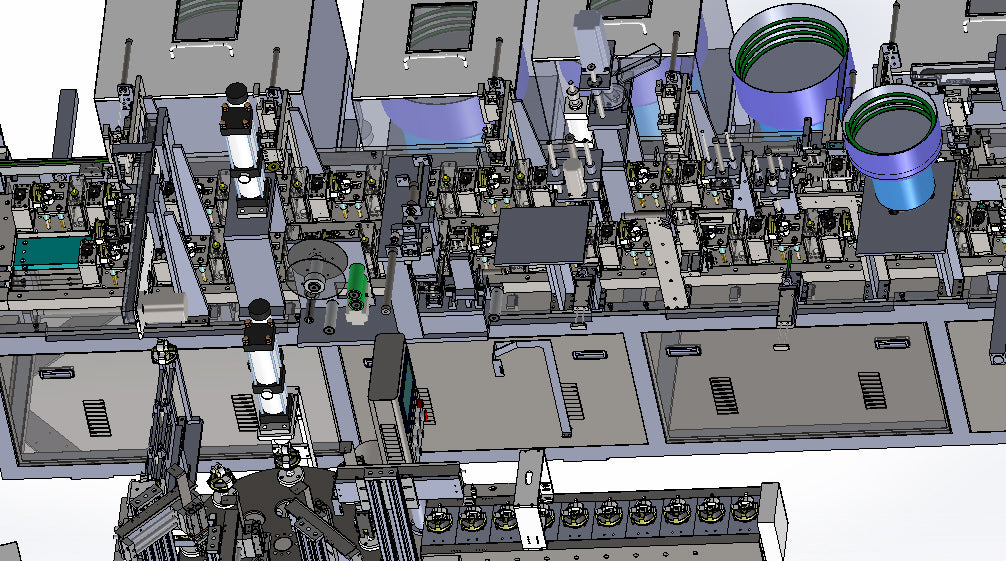

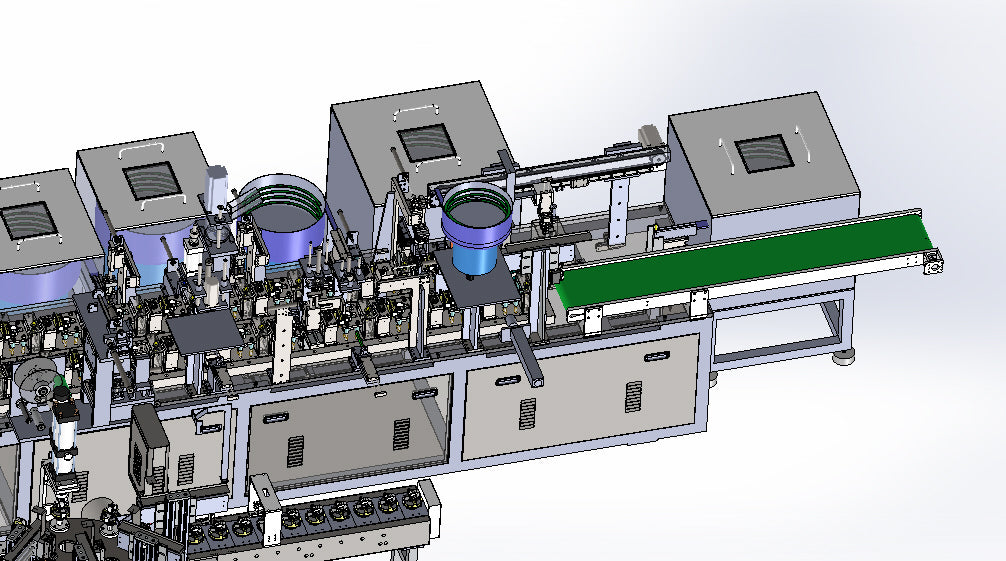

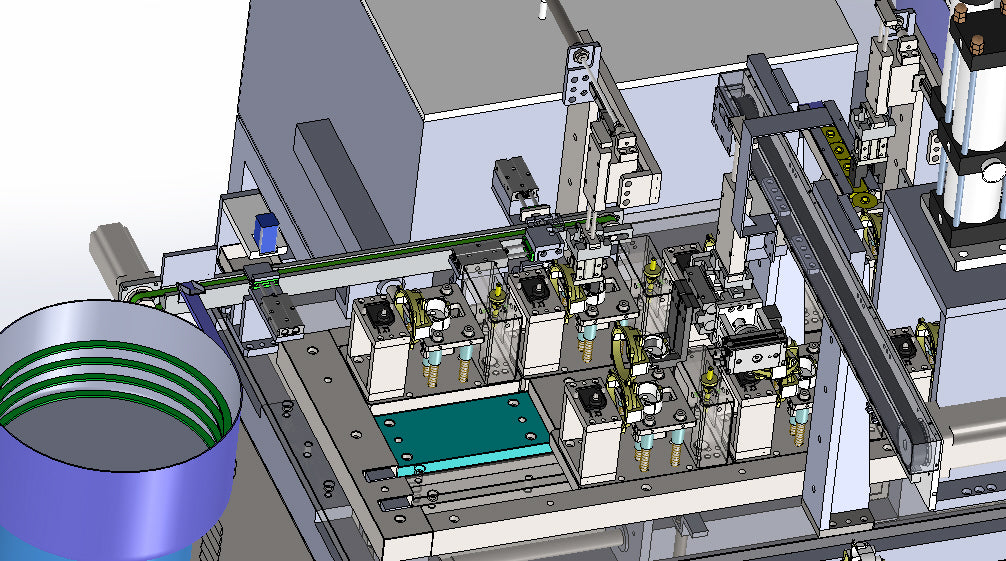

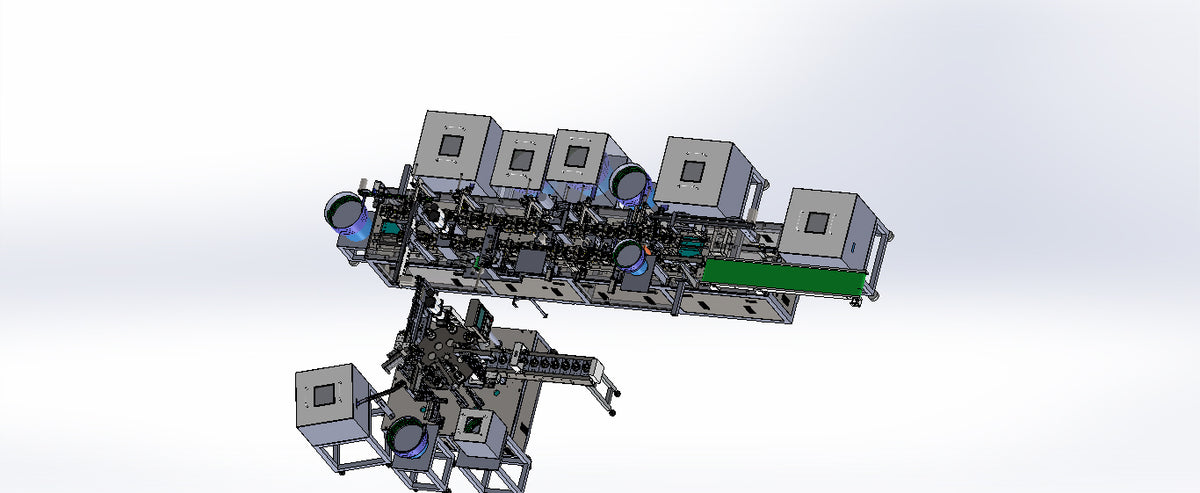

N301017 A Complex Automatic Motor Assembly Production Line

This equipment is a highly complex, multi-process integrated automatic assembly production line for motors, suitable for mass production of various types of miniature DC motors, stepper motors, brushless motors, or vibration motors. The production line covers multiple core processes including rotor assembly, stator assembly, magnet mounting, bearing pressing, commutator pressing, winding, spot welding, and performance testing, achieving full-line automated production from bulk components to finished motors.

Included Documentation:

• ✅ SolidWorks source files (editable)

• ✅ Parts list in Chinese format

• ✅ Procurement list

• ✅ (If applicable) 2-ton pressing electric cylinder DMC93-XXX datasheet

Key Features:

• High complexity, multi-process integrated motor assembly line

• Covers core processes: rotor, stator, magnet, bearing, commutator, winding, spot welding, etc.

• Adaptable to various motor models with quick changeover capability

• Integrated online inspection and performance testing stations

• Full-line continuous operation for improved capacity and consistency

• Complete editable 3D source files and engineering documentation included

Applications:
Miniature DC motor mass production, stepper motor automatic assembly, brushless motor turnkey line output, vibration motor OEM line construction

Suggested Category: SPM for Assembly

📁 This product comes with editable SolidWorks source files, a Chinese parts list, and a procurement list for complete line layout evaluation, process adjustment, and line integration.
