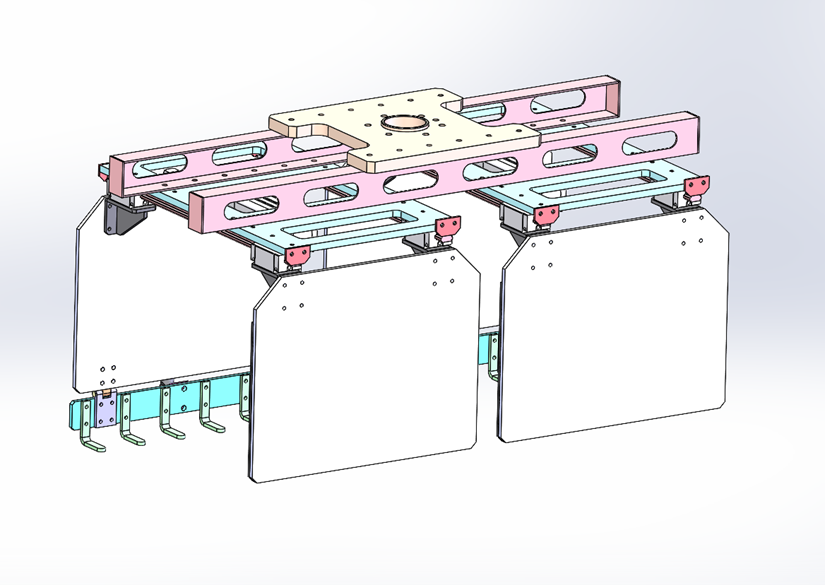

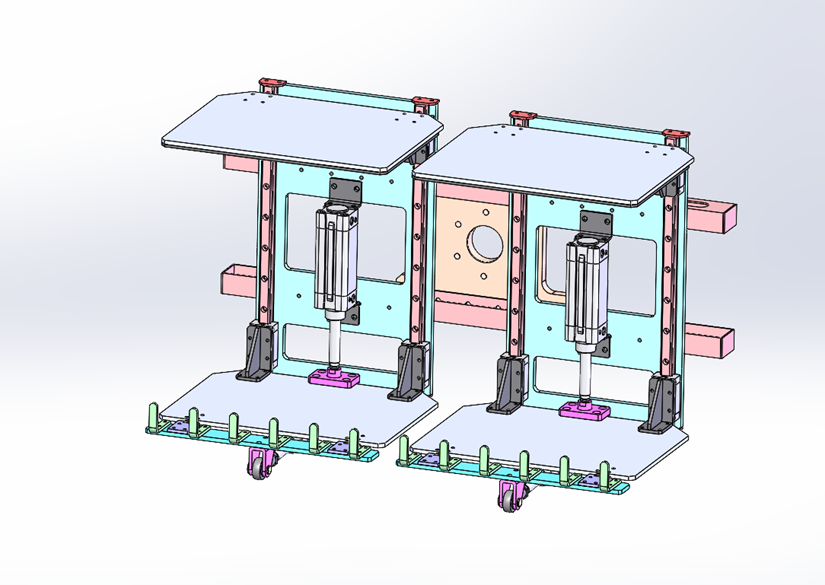

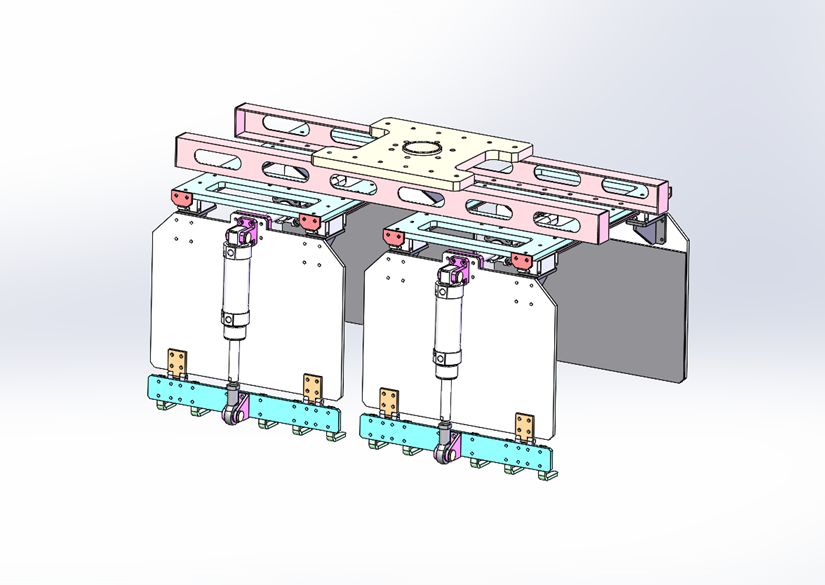

A0524. Dual-Station Plate-Type Palletizer Gripper

PRODUCT NOTES & FILE INFORMATION

① SOFTWARE & COMPATIBILITY

This 3D model was originally created in SolidWorks 2022. It can be opened directly in SolidWorks 2022 or later. The source files include motion study assemblies, which are valuable for learning SolidWorks animation and motion simulation.

② Parametric Models

A 参数 icon in the top right corner of the main image indicates that the 3D model contains editable parameters such as sketch dimensions and features.

③ Multi-Format Support

For compatibility with other 3D software (e.g., UG, Inventor, Creo) and lower versions of Solidworks, an STP file is also included in the compressed package. The STP format is a neutral file type and does not include mating relations or motion study files – please note this.

④ Additional Formats Available

If you need other common neutral file formats (e.g., X-T, IGES), please contact our customer service for conversion
